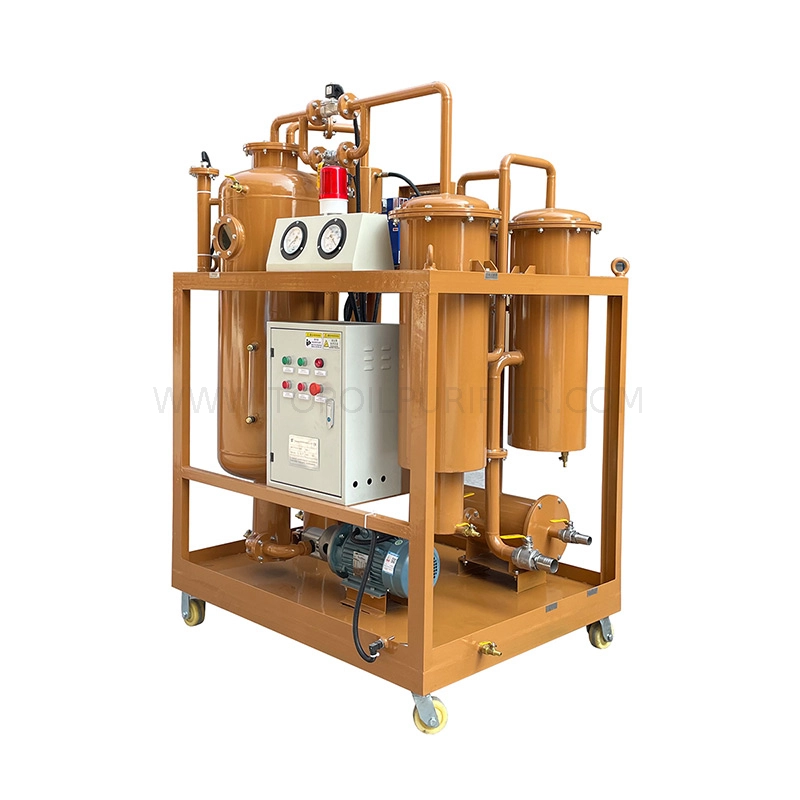

Chongqing TOP Oil Purifier Co., Ltd. is one of the most reliable manufacturers and suppliers of Turbine Oil Purification Unit in China, also supports customized service. Please feel free to buy advanced Turbine Oil Purification Unit made in China here from our factory.
- The TY Turbine Oil Purification Unit integrates the advantages of gravity separation, gasification, vacuum separation, and mechanical filtration, forming a multi-principle synergistic purification system.
- Our Turbine Oil Purification Unit applies vacuum drying and automatic demulsification technology, capable of separating both large amounts and trace amounts of water from the oil.
- The equipment also features a vacuum desorption evaporation system specifically designed for deep vacuum dehydration of trace amounts of water in the oil, ensuring that the oil's moisture content meets standards.
Technical Specifications:
|
Item |
Unit |
TY-10 |
TY -20 |
TY-30 |
TY -50 |
TY -100 |
TY -150 |
TY-200 |
TY -300 |
||||||||
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
||||||||
|
Vacuum Degree |
Mpa |
-0.06 ~ - 0.096 |
|||||||||||||||
|
Working Pressure |
Mpa |
≤ 0.5 |
|||||||||||||||
|
Temperature Range |
℃ |
20~80 |
|||||||||||||||
|
Power Supply |
380V/50HZ/3P 5 Wires (Can be customized) |
||||||||||||||||
|
Working Noise |
dB(A) |
≤ 65~80 |
|||||||||||||||
|
MTBF |
H |
≥ 4000 |
|||||||||||||||
|
Continuous Working |
H |
≥150 |
|||||||||||||||
|
Heating Power |
KW |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
||||||||
|
Total Power |
KW |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
||||||||
|
Oil Outlet/Inlet Caliber |
mm |
Φ25 |
Φ25 |
Φ32 |
Φ32 |
Φ42 |
Φ50 |
φ60 |
Φ60 |
||||||||
|
Weight |
KG |
400 |
450 |
500 |
600 |
800 |
1000 |
1100 |
1550 |
||||||||
|
Size |
L |
mm |
1500 |
1550 |
1600 |
1650 |
1700 |
1750 |
1900 |
2000 |
|||||||
|
W |
mm |
800 |
850 |
900 |
950 |
1000 |
1200 |
1300 |
1350 |
||||||||
|
H |
mm |
1600 |
1650 |
1700 |
1750 |
1800 |
1800 |
2000 |
2100 |
||||||||
|
Index After Filtering |
Moisture Content |
PPM |
≤ 100 |
||||||||||||||
|
Gas Content |
% |
0.2 |
|||||||||||||||
|
Impurity Size |
μm |
≤5 (Can be customized) |
|||||||||||||||
|
Demulsification Value |
(Fresh oil)≤15min, (Oil in operation)≤30min |
||||||||||||||||
|
Cleanliness |
Degree |
≤ 6(NAS 1638) |
|||||||||||||||
FAQ
Q: What is the primary purpose of a turbine oil purification system?
A: A turbine oil purification system eliminates water, solid particulates and oxidation‑derived by‑products from lube oil. Maintaining proper oil cleanliness optimizes turbine operating performance and prolongs the service life of critical rotating components.
Q: How does the centrifugal turbine oil filtration machine operate?
A: The leverages high‑speed centrifugal force to separate solid impurities and free water out of turbine oil. It delivers continuous purification with no replaceable filter cartridge consumables required.
Q: What benefits come with investing in a premium turbine oil filtration unit?
A: Reliable turbine oil filtration cuts routine maintenance expenditure, mitigates risk of unplanned outages, and extends asset service life. It sustains stable oil cleanliness levels to keep turbine systems running at peak efficiency.
