Chongqing TOP Oil Purifier Co., Ltd. is one of the most reliable manufacturers and suppliers of lube oil purification in China, also supports customized service. Please feel free to buy advanced lube oil purification made in China here from our factory.
Products Description

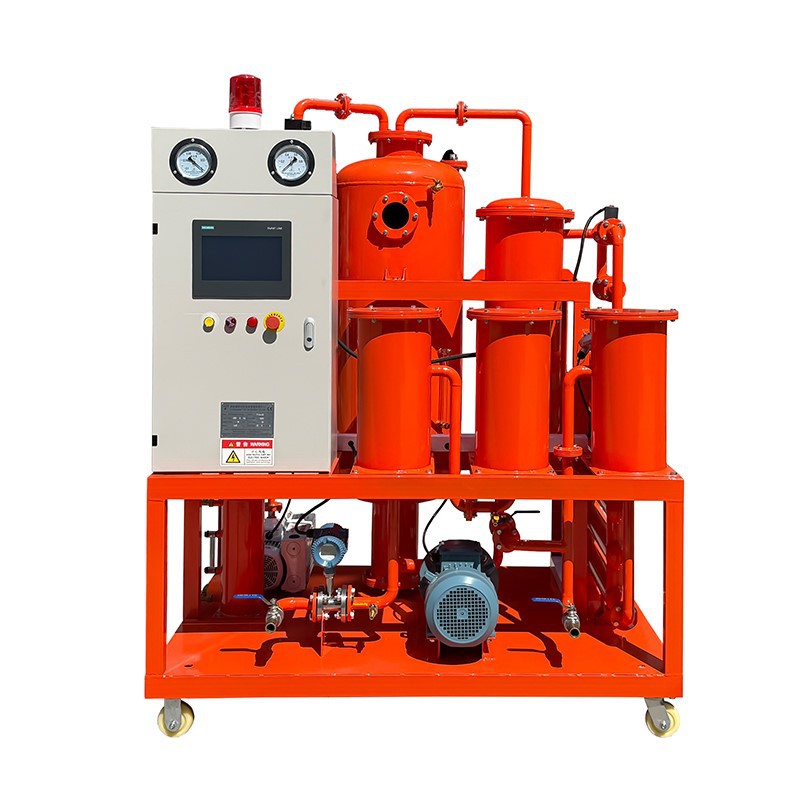

When hydraulic and lubricating oils collect moisture, solid particles and entrained gas, the result is oil emulsification, pump cavitation and accelerated component wear – often leading to unplanned production downtime. The TYA lube oil purification system removes free and dissolved water, particulate and gas from hydraulic oil, gear oil, compressor oil, heat treatment oil and other industrial oils by combining vacuum dehydration with multi-stage filtration. Flow rate, supply voltage and filtration precision can be adjusted to match actual field conditions.
Product Parameters
|
Item |
Unit |
TYA-10 |
TYA -20 |
TYA -30 |
TYA -50 |
TYA -100 |
TYA -150 |
TYA -200 |
TYA -300 |
||||||||
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
||||||||
|
Vacuum Degree |
Mpa |
-0.06 ~ - 0.096 |
|||||||||||||||
|
Working Pressure |
Mpa |
≤ 0.5 |
|||||||||||||||
|
Temperature Range |
℃ |
0~100 |
|||||||||||||||
|
Power Supply |
380V/50HZ/3P 5 Wires (Can be customized) |
||||||||||||||||
|
Working Noise |
dB(A) |
≤ 65~80 |
|||||||||||||||
|
MTBF |
H |
≥ 4000 |
|||||||||||||||
|
Continuous Working |
H |
≥150 |
|||||||||||||||
|
Heating Power |
KW |
15 |
18 |
24 |
36 |
60 |
90 |
120 |
180 |
||||||||
|
Total Power |
KW |
17 |
20 |
26 |
39 |
64 |
96 |
128 |
195 |
||||||||
|
Oil Outlet/Inlet Caliber |
mm |
Φ25 |
Φ25 |
Φ32 |
Φ32 |
Φ38 |
Φ50 |
φ60 |
φ76 |
||||||||
|
Weight |
KG |
350 |
380 |
400 |
450 |
600 |
900 |
1000 |
1600 |
||||||||
|
Size |
L |
mm |
1300 |
1300 |
1350 |
1450 |
1650 |
1900 |
2100 |
2400 |
|||||||
|
W |
mm |
900 |
900 |
1000 |
1050 |
1100 |
1300 |
1400 |
1600 |
||||||||
|
H |
mm |
1650 |
1650 |
1700 |
1750 |
1800 |
1900 |
2000 |
2100 |
||||||||
|
Index After Filtering |
Moisture Content |
PPM |
≤ 50 |
||||||||||||||
|
Gas Content |
% |
0.1 |
|||||||||||||||
|
Impurity Size |
μm |
≤5 (Can be customized) |
|||||||||||||||
|
Demulsification Value |
(Fresh oil)≤15min, (Oil in operation)≤30min |
||||||||||||||||
|
Cleanliness |
Degree |
≤ 6(NAS 1638) |
|||||||||||||||
Features
Deep vacuum moisture and gas removal
A flash evaporation tank operating at -0.06 to -0.096 MPa vacuum breaks stubborn water-in-oil emulsions and strips out dissolved gas. Residual moisture is held to ≤50 ppm and gas content to ≤0.1%, helping prevent pump cavitation and oil oxidation.
Gradated multi-stage filtration
Oil passes through staged filter cartridges that capture metal debris, sludge and fine particles down to 5 µm, with finer media available as an option. The tiered design extends filter life and brings oil cleanliness to NAS 1638 class 6 or better, reducing abrasive wear on pumps and valves.
Robust, compact construction
Oil-contact components use high-temperature-resistant alloys, and the integrated frame supports continuous operation in harsh plant environments. A small footprint allows installation in congested equipment rooms and simplifies daily site management.
Unattended running reliability
With MTBF ≥4000 hours and a continuous working capability of ≥150 hours, the unit lowers operator intervention and day-to-day maintenance workload on the production floor.
Application Scenarios
Steel mills and metallurgy
The system maintains hydraulic and lube oil for rolling mills and continuous casters, removing water and metal fines that cause valve sticking and system sluggishness.
Power generation
It purifies turbine lube oil and EHC fluids to avoid bearing scoring and piping cavitation, preventing unscheduled outages.
Mining and heavy manufacturing
It handles heavily contaminated oil in dusty, humid conditions, keeping excavator and haul truck hydraulic systems available.
Refrigeration and chemical processing
It restores compressor and heat treatment oils affected by seasonal moisture, stopping emulsification and preserving heat transfer efficiency.
