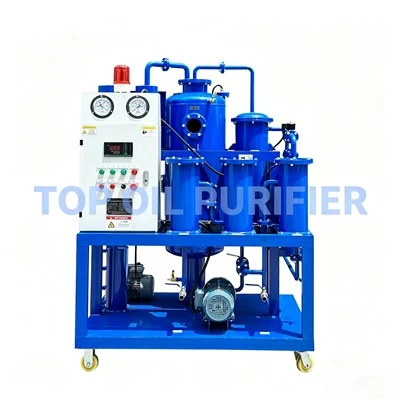

Chongqing TOP Oil Purifier Co., Ltd. is one of the most reliable manufacturers and suppliers of Hydraulic Oil Separation Machine in China, also supports customized service. Please feel free to buy advanced Hydraulic Oil Separation Machine made in China here from our factory.
To Meet Customers' Special Needs, We Develop :
• TYA -A Fully Automatic Hydraulic Oil Separation Machine
• TYA -W Enclosed Hydraulic Oil Separation Unit
• TYA -Ex Explosion-Proof Hydraulic Oil Separation Machine
Features:
1. The hydraulic oil separation machine integrates three-dimensional evaporation technology, thin-film evaporation technology, and multi-stage oil-water separation technology, forming three interconnected purification chains.
2. First, breaking the emulsified state through multi-stage oil-water separation, then expanding the vaporization interface through three-dimensional evaporation, and finally thinning the oil film to a depth of 0.2mm for dehydration through thin-film evaporation.
3. When treating wind turbine gearbox oil, even if the initial water content is high, the hydraulic oil separation machine can stably output clean oil with water content below 100ppm, effectively preventing bearing pitting and gear bonding.
Technical Specifications:
|
Item |
Unit |
TYA-10 |
TYA -20 |
TYA -30 |
TYA -50 |
TYA -100 |
TYA -150 |
TYA -200 |
TYA -300 |
||||||||
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
||||||||
|
Vacuum Degree |
Mpa |
-0.06 ~ - 0.096 |
|||||||||||||||
|
Working Pressure |
Mpa |
≤ 0.5 |
|||||||||||||||
|
Temperature Range |
℃ |
0~100 |
|||||||||||||||
|
Power Supply |
380V/50HZ/3P 5 Wires (Can be customized) |
||||||||||||||||
|
Working Noise |
dB(A) |
≤ 65~80 |
|||||||||||||||
|
MTBF |
H |
≥ 4000 |
|||||||||||||||
|
Continuous Working |
H |
≥150 |
|||||||||||||||
|
Heating Power |
KW |
15 |
18 |
24 |
36 |
60 |
90 |
120 |
180 |
||||||||
|
Total Power |
KW |
17 |
20 |
26 |
39 |
64 |
96 |
128 |
195 |
||||||||
|
Oil Outlet/Inlet Caliber |
mm |
Φ25 |
Φ25 |
Φ32 |
Φ32 |
Φ38 |
Φ50 |
φ60 |
φ76 |
||||||||
|
Weight |
KG |
350 |
380 |
400 |
450 |
600 |
900 |
1000 |
1600 |
||||||||
|
Size |
L |
mm |
1300 |
1300 |
1350 |
1450 |
1650 |
1900 |
2100 |
2400 |
|||||||
|
W |
mm |
900 |
900 |
1000 |
1050 |
1100 |
1300 |
1400 |
1600 |
||||||||
|
H |
mm |
1650 |
1650 |
1700 |
1750 |
1800 |
1900 |
2000 |
2100 |
||||||||
|
Index After Filtering |
Moisture Content |
PPM |
≤ 50 |
||||||||||||||
|
Gas Content |
% |
0.1 |
|||||||||||||||
|
Impurity Size |
μm |
≤5 (Can be customized) |
|||||||||||||||
|
Demulsification Value |
(Fresh oil)≤15min, (Oil in operation)≤30min |
||||||||||||||||
|
Cleanliness |
Degree |
≤ 6(NAS 1638) |
|||||||||||||||
