Chongqing TOP Oil Purifier Co., Ltd. is one of the most reliable manufacturers and suppliers of turbine oil purification plant in China, also supports customized service. Please feel free to buy advanced turbine oil purification plant made in China here from our factory.
Application

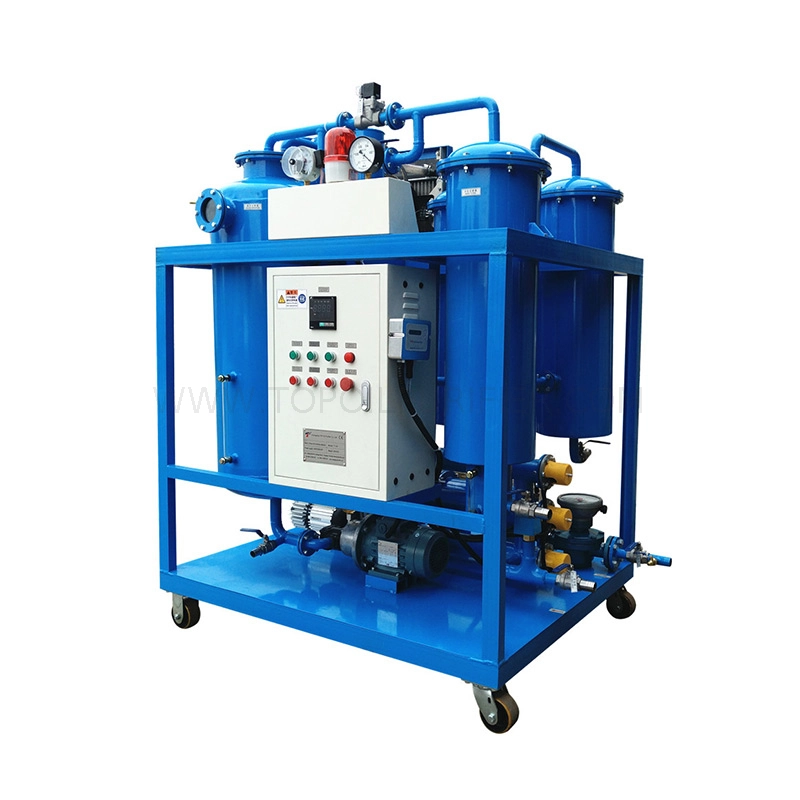

TY Series Turbine Oil Purification Plant
It is suitable for online processing of turbine oils of steam turbines, gas turbines, and water turbines in electric power, chemical industry, papermaking, metallurgy and other industries to ensure normal adjustment and operation of the lubrication system. The unit can also purify low-viscosity lubricating oils and cooling oils.
To Meet Customers' Special Needs, We Develop
- TY Special Oil Filter For Turbine Oil
- TY-A Fully Automatic Turbine Oil Purification Plant
- TY-M Mobile Turbine Oil Purification Plant
- TY-W Enclosed Turbine Oil Filter
- TY-Ex Explosion-Proof Turbine Oil Purifier
Features
- This model integrates advantages of gravity method, gasification method, coalescer & separation method, vacuum separation, mechanical filtration, etc. It adopts vacuum drying, automatic demulsification and other technologies, which can separate a large amount of water in the oil. It can also remove trace water from oil, and has high dehydration and demulsification efficiency, making turbid and emulsified oil clear and transparent.
- The machine is also equipped with a vacuum analysis and evaporation system, which performs vacuum dehydration of micro-water in the oil without changing its chemical properties, and extends its service life.
- The sophisticated multi-stage filter elements can effectively remove various mechanical impurities with higher precision stage by stage, as well as large dirt holding capacity and long service life.
- Advanced infrared liquid level automatic control system, automatic visual and vocal alarm system and pressure protection device to ensure safe and stable operation of the equipment.
Technical Specifications
|
Item |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
|
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
|
Vacuum Degree |
Mpa |
-0.06~–0.096 |
||||||||
|
Vacuum Pressure |
Mpa |
≤ 0.5 |
||||||||
|
Temperature Range |
20~80 |
|||||||||
|
Power Supply |
380V/50HZ/3Ph 5 Wires (Can be customized) |
|||||||||
|
Working Noise |
dB(A) |
≤ 65~80 |
||||||||
|
MTBF |
H |
≥ 4000 |
||||||||
|
Continuous Working |
H |
150 |
||||||||
|
Heating Power |
kW |
15 |
18 |
24 |
36 |
60 |
90 |
120 |
180 |
|
|
Total Power |
kW |
17 |
20 |
26 |
39 |
64 |
96 |
128 |
195 |
|
|
Oil Outlet/Inlet Caliber |
mm |
Φ25 |
Φ25 |
Φ32 |
Φ32 |
Φ38 |
Φ50 |
Φ60 |
Φ76 |
|
|
Weight |
kg |
400 |
450 |
480 |
550 |
650 |
900 |
1100 |
1600 |
|
|
Size |
L |
mm |
1200 |
1250 |
1300 |
1350 |
1650 |
1900 |
2100 |
2400 |
|
W |
mm |
950 |
1000 |
1000 |
1050 |
1150 |
1300 |
1400 |
1600 |
|
|
H |
mm |
1650 |
1650 |
1700 |
1750 |
1800 |
1900 |
2000 |
2100 |
|
|
Index After Filtering |
Moisture Content |
PPM |
≤50 |
|||||||
|
Gas Content |
% |
0.1 |
||||||||
|
Demulsification Value |
min |
≤15 |
||||||||
|
Cleanliness Degree |
NAS 1638 |
≤6 |
||||||||
|
Impurity Size |
μm |
≤5(Can be customized) |
||||||||
