Chongqing TOP Oil Purifier Co., Ltd. is one of the most reliable manufacturers and suppliers of hydraulic filter press machine in China, also supports customized service. Please feel free to buy advanced hydraulic filter press machine made in China here from our factory.
Application

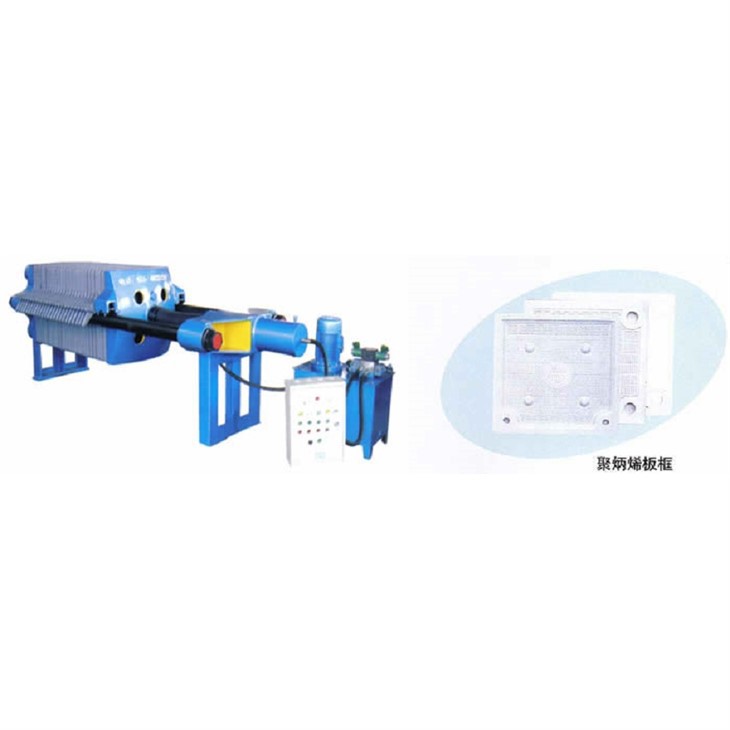

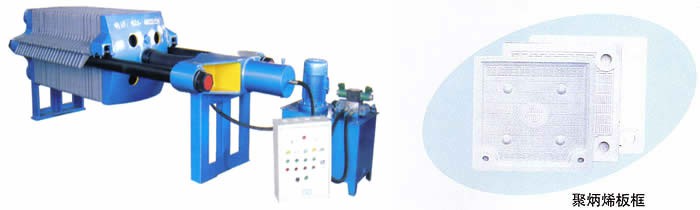

Hydraulic Filter Press Machine
Hydraulic filter press machine are commonly employed across a wide range of suspension liquids to achieve solid-liquid separation, with applications spanning the food, environmental protection, light industry, pharmaceutical, chemical, metallurgical, and petroleum sectors. Among these, the oil filter press-true to its name-finds extensive use within the oil industry.
As a key piece of the hydraulic filter press machine in oil milling operations, the oil filter press is well-suited for the purification and filtration of various types of crude vegetable oils. It can also be utilized to treat wastewater and waste cooking oil. When fitted with a finer-mesh filter cloth, it is capable of purifying biodiesel as well.
Features
1. Hydraulic system** featuring rapid opening and closing with integrated self-protection functionality.
2. Multiple hydraulic cylinders** ensuring uniform and symmetrical distribution of the closing force across the oil filter press.
3. Multiple feed inlets** designed to reduce both filling and filtration cycle times.
4. Long-life filtration components** for enhanced durability and sustained performance.
5. Optimized filtrate channel design** to improve flow efficiency.
6. Membrane technology** incorporated for secondary dewatering to further reduce moisture content.
7. Cake blow process** employed to achieve additional dewatering.
8. Core blow process** utilized to clear residual material from the feed inlets.
9. Ample cake discharge space** designed to prevent damage to the filter cloth during cake removal.
10. Specialized cake discharge mechanism** enabling fully automated, rapid cake ejection.
11. Fully automatic control system** for streamlined, hands-free operation.
Technical index
Technical Parameters of 450-jack compress Iron frame 450-jack compress iron van filter.
|
Model Specifications |
Filtration area (m2) |
Frame size (mm) |
Flitch thickness (mm) |
Plate number (pcs) |
Frame number (pcs) |
Volume filter room (L) |
Dimensions (L x W x H) (mm) |
Filter Pressure (Mpa) |
Whole Weight (kg) |
Foundation Size |
|||
|
BAMQ4/450-25 BAMQ6/450-25 BAMQ8/450-25 BAMQ10/450-25 BAMQ12/450-25 |
4 6 8 10 12 |
450 X 450 |
25 |
9 14 19 24 29 |
10 15 20 25 30 |
51 76 102 127 152 |
1450*870*880 1700*870*880 1950*870*880 2200*870*880 2450*870*880 |
0.6 |
1100 1330 1550 1775 2000 |
L |
B |
A |
H |
|
1110 1360 1610 1850 2110 |
300 |
420 |
520 |
||||||||||
Technical Parameters of 630-hydraulic Clamping Iron Frame Filter Press 630-van Hydraulic Clamping Iron Van Filter
|
Model Specifications |
Filtration area (m2) |
Frame size (mm) |
Flitch thickness (mm) |
Plate number (pcs) |
Frame number (pcs) |
Volume filter room (L) |
Dimensions (L x W x H) (mm) |
Filter Pressure (Mpa) |
Whole Weight (kg) |
Foundation Size |
|||
|
BAMY20/630-25 BAMY25/630-25 BAMY30/630-25 |
20 25 30 |
630 X 630 |
25 |
24 30 37 |
25 31 38 |
248 312 377 |
3300*1200*1100 3600*1200*1100 3900*1200*1100 |
0.6 |
4200 4900 3090 |
L |
B |
A |
H |
|
2490 2790 3520 |
500 |
520 |
820 |
||||||||||
Technical Parameters of 800-hydraulic Clamping Iron Frame Filter Press 800-van Hydraulic Clamping Iron Van Filter
|
Model Specifications |
Filtration area (m2) |
Frame size (mm) |
Flitch thickness (mm) |
Plate number (pcs) |
Frame number (pcs) |
Volume filter room (L) |
Dimensions (L x W x H) (mm) |
Filter Pressure (Mpa) |
Whole Weight (kg) |
Foundation Size |
|||
|
BAMY40/800-25 BAMY50/800-25 BAMY60/800-25 BAMY70/800-25 |
40 50 60 70 |
800 X 800 |
25 |
30 38 46 54 |
31 39 47 55 |
496 624 752 880 |
3750*1380*1300 4200*1380*1300 4600*1380*1300 5050*1380*1300 |
0.5 |
7000 7800 9200 11800 |
L |
B |
A |
H |
|
2640 3080 3520 3920 |
500 |
710 |
870 |
||||||||||
|
BAMY40/800-30 BAMY50/800-30 BAMY60/800-30 BAMY70/800-30 |
40 50 60 70 |
800 X 800 |
30 |
30 38 46 54 |
31 39 47 55 |
595 749 902 1056 |
3820*1450*1300 4300*1450*1300 4780*1450*1300 5260*1450*1300 |
0.6 |
7600 9000 10350 11800 |
2910 3390 3870 4350 |
600 |
710 |
870 |
