Transformers Oil Filtration

Transformers Oil Filtration

ZYD Double Stage Vacuum Insulation Oil Purification Plant is specially used for dehydration, degassing and precision filtration of transformer oil and other insulating liquids. It can effectively remove moisture, gas, solid particles and other impurities to improve and maintain the dielectric strength of insulating oil. It is suitable for oil treatment in workshops, storage tanks and directly on energized or de-energized transformers, and can also be used for vacuum drying and vacuum oil injection of electrical equipment.
Send Inquiry
Description
Technical Parameters

Chongqing TOP Oil Purifier Co., Ltd. is one of the most reliable manufacturers and suppliers of transformers oil filtration in China, also supports customized service. Please feel free to buy advanced transformers oil filtration made in China here from our factory.



Products Description



The ZYD series transformer oil filtration machine uses double-stage vacuum dehydration and multi-stage filtration to remove moisture, dissolved gases and solid particles from insulating oils, restoring dielectric strength for reliable transformer operation. This transformer oil filtration system can process oil in storage tanks, drums or directly in energized transformers, supporting both offline and online maintenance.



Technical Specifications

Parameters

Unit

ZYD-30

ZYD-50

ZYD-100

ZYD-150

ZYD-200

ZYD-250

ZYD-300

Flow Rate

L/min

30

50

100

150

200

250

300

Flow Rate

L/H

1800

3000

6000

9000

12000

15000

18000

Working vacuum

MPa

-0.08~-0.099

Working Pressure

MPa

≤0.3

Temperature Range

℃

20~80

Power



AC380V/50HZ/3Ph 5 wire (can be customized)

Working Noise

dB(A)

68

70

70

75

75

75

75

Heating Power

kW

24

36

72

96

120

140

180

Total Power

kW

27

40

80

104

130

150

196

Inlet/Outlet

mm

φ25

φ32

Φ38

Φ45

φ50

φ60

φ63

Weight

kg

600

800

1200

1400

1500

1700

1900

Overall

L

mm

1550

1650

1900

2000

2100

2150

2200

W

mm

1100

1250

1350

1400

1500

1550

1600

H

mm

1850

2000

2100

2050

2150

2150

2200

Index after filtering

Breakdown Voltage

kV

≥75

Moisture content

PPM

≤3

Gas content

%

≤0.1

Impurity size

micron

≤1 (no free carbon)

Value β

%

98

Cleanness

NAS1638

≤6



Features



  1. The steel frame receives an epoxy zinc-rich primer and anti-corrosion topcoat, while all wetted parts in contact with hot oil are made of stainless steel, preventing rust and extending equipment life in humid substations and coastal sites.
  2. A PLC continuously monitors vacuum level, oil temperature and liquid level, controlling the entire cycle and logging data; if any reading deviates from set parameters, it triggers an alarm and shuts down the process safely.
  3. The vacuum chamber, filters and control cabinet are built as separate modules that bolt together on site, cutting floor space by roughly 30% compared to a single-frame layout and making transport through narrow transformer bay doors practical.

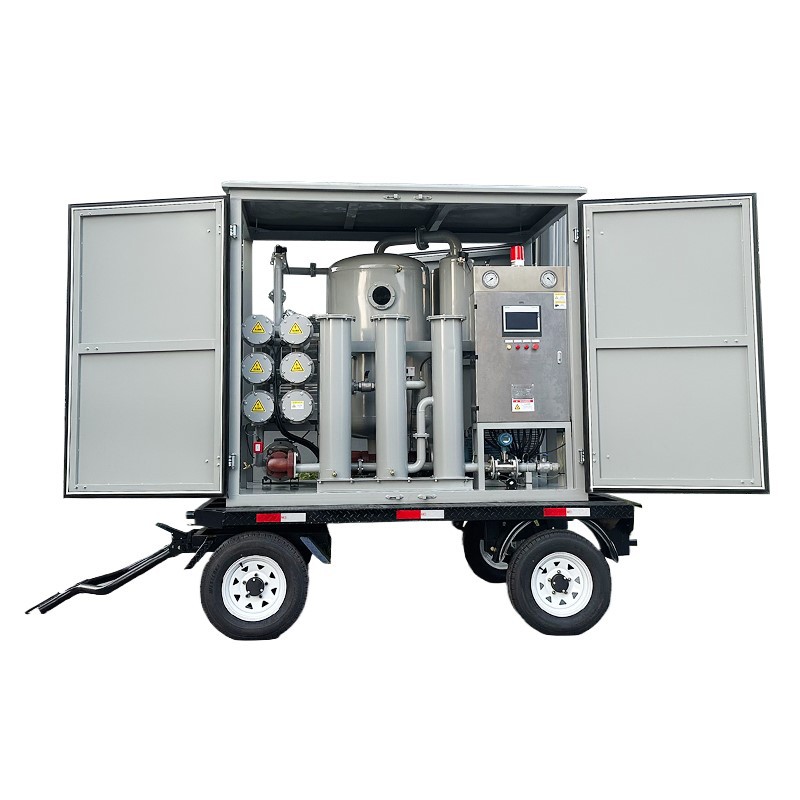

  4. Enclosure, mobility and filtration precision can be configured to order: a weather-proof cabinet for outdoor yards, a trailer-mounted package for multi-site fleets, and final filter elements down to 1 µm absolute.

Application Scenarios



  • Power plants treating insulating oil for generator step-up transformers and auxiliary transformers during scheduled outages.
  • Utility substations performing on-site purification of transformer oil without draining or transporting the oil off-site.
  • Electrical equipment manufacturers drying and filtering new oil before filling transformers, instrument transformers and circuit breakers.



FAQ

Q: Can the machine process oil while the transformer is energized?

A: Yes. The unit can be connected to an operating transformer via the drain and fill valves, allowing online filtration without interrupting service. Flow and vacuum are regulated to keep oil circulation safe for the energized equipment.

Q: Is a mobile version available for multiple transformer sites?

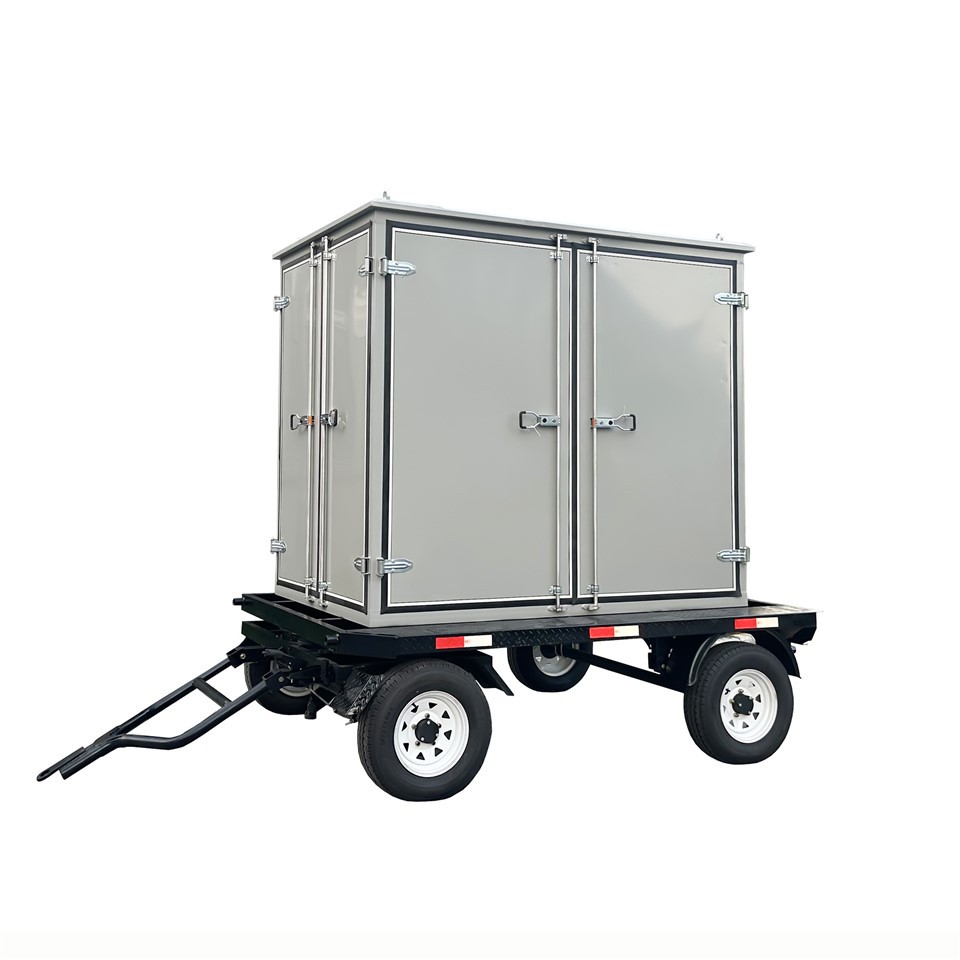

A: Yes. A trailer-mounted configuration with pneumatic tires and a standard tow hitch is offered, enabling one machine to serve several substations or power plants.

Q: Can filtration precision be adjusted for different cleanliness requirements?

A: The standard filter train delivers 5 µm absolute, but the final filter stage can be upgraded to 3 µm or 1 µm absolute to meet tighter oil cleanliness specifications.
