Chongqing TOP Oil Purifier Co., Ltd. is one of the most reliable manufacturers and suppliers of coalescer-separator in China, also supports customized service. Please feel free to buy advanced coalescer-separator made in China here from our factory.
Application

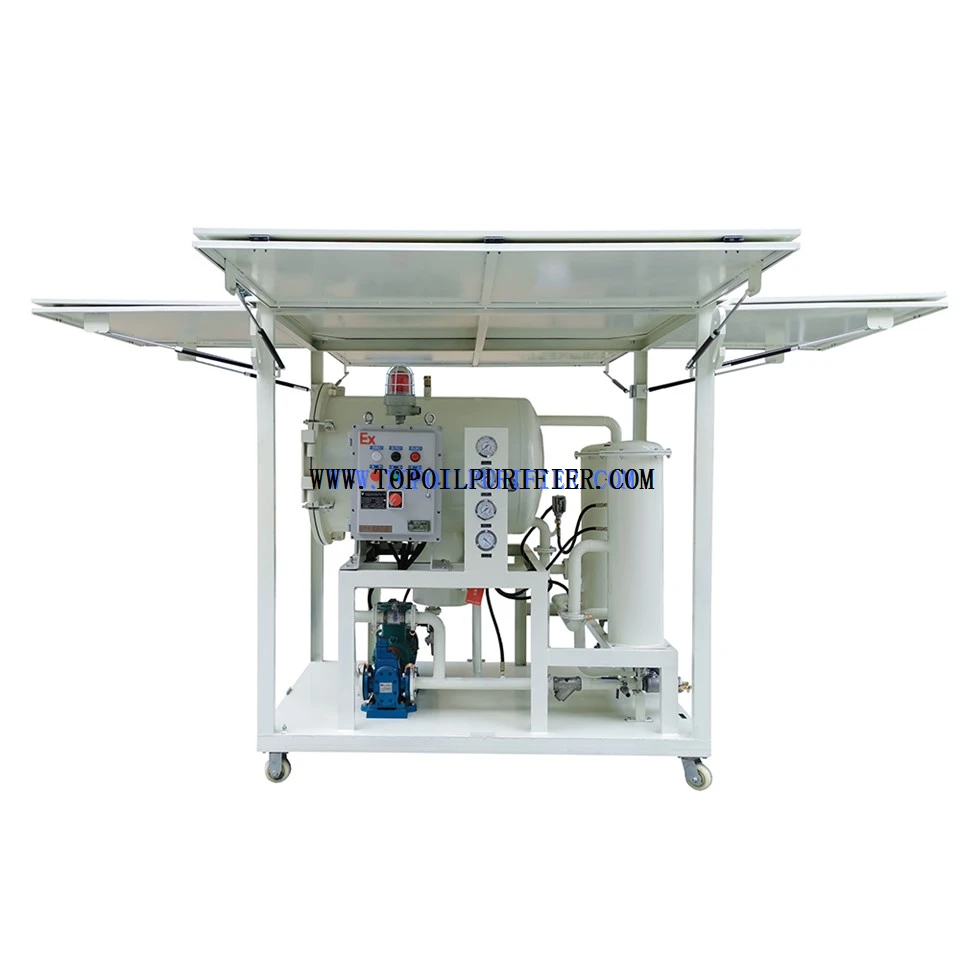

TYB Coalescer-Separator
TYB Coalescer-Separator is designed based on the principle of coalescing separation, incorporating a high-performance coalescing separation filter element that integrates precision filtration with efficient demulsification and dehydration functions. It requires no heating and can quickly break down the oil-water emulsion interface at room temperature, causing tiny water droplets to coalesce and settle. Its dehydration speed ranks among the top in similar domestic products.
Even in extreme conditions with an oil-water ratio as high as 1:1 (such as severely emulsified oil with a "half oil, half water" composition), it can quickly separate large amounts of free water and emulsion water in one pass. The cleanliness of the treated oil reaches NAS 1638 Class 6 standard, meeting high cleanliness requirements. The entire machine adopts a trolley-type structure, making it flexible to move and easy to operate, allowing for easy relocation. It is mainly used for the rapid purification of high-water-content oils such as aviation fuel, gasoline, kerosene, diesel, and low-viscosity lubricating oils, efficiently removing moisture and impurities and ensuring the safe and reliable operation of oil-using equipment.
To Meet Customers' Special Needs, We Develop
- TYB Coalescer-Separator
- TYB-A Fully Automatic Coalescer-Separator
- TYB -W Enclosed Coalescer-Separator

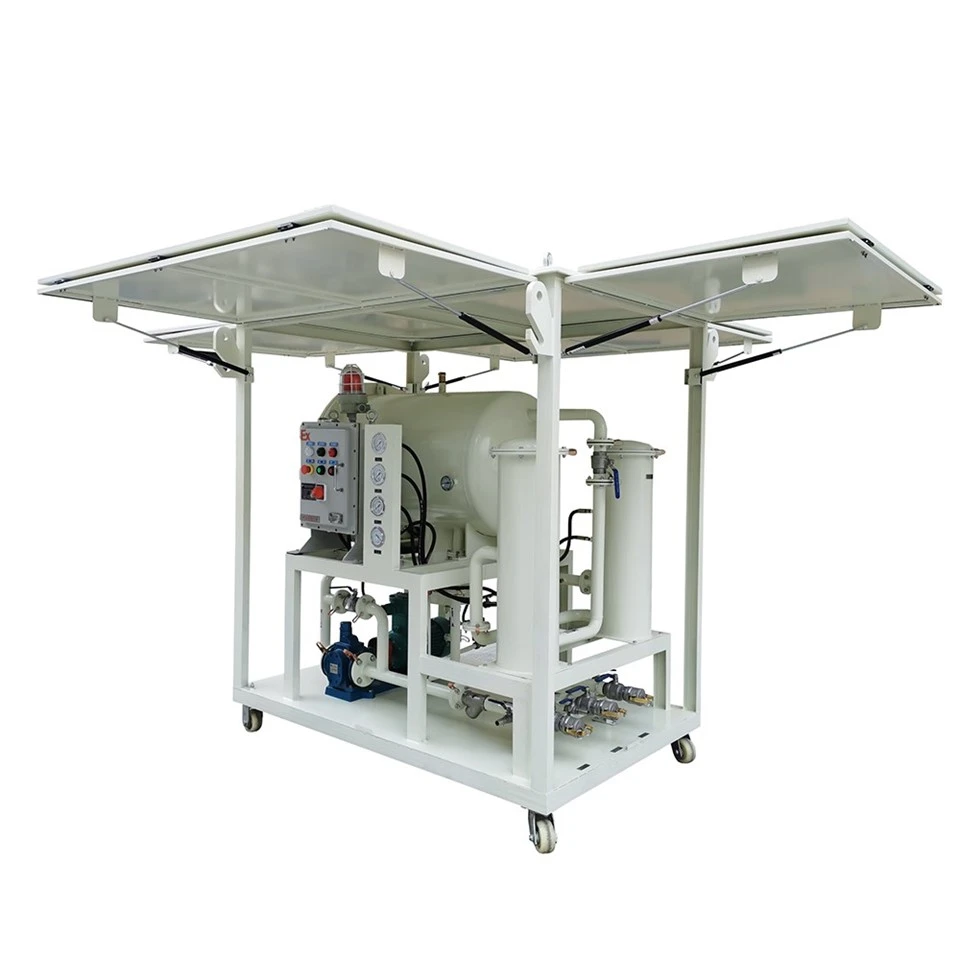

- TYB -Ex Explosion-Proof Coalescer-Separator
Features
1. Rapid Dehydration: They are designed to break emulsions quickly, making them highly effective for rapid dehydration of light hydrocarbon oils, such as turbine, transformer, and hydraulic oils.
2. High-Precision Filtration: Equipped with micron-level filters, these purifiers remove solid contamination to achieve high purity standards (often NAS 6 or higher).
3. Improved Oil Quality: By relying on physical, non-thermal processes, the system cleans the oil without altering its chemical structure, thus extending its service life.
4. Compact Design: The systems are often compact and efficient, making them suitable for treating various light oils, including diesel and kerosene.
Technical Parameters
|
Item |
Unit |
TYB-Ex-10 |
TYB-Ex-30 |
TYB-Ex-50 |
TYB-Ex-100 |
TYB-Ex-150 |
TYB-Ex-200 |
TYB-Ex-300 |
|
Flow rate |
L/H |
600 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working temperature |
℃ |
20~ 80 |
||||||
|
Working pressure |
Mpa |
≤0.5 |
||||||
|
Power supply |
/ |
380V/50HZ/3Ph 5 wire(as customer's requirement) |
||||||
|
Filtration accuracy |
μm |
≤6 |
||||||
|
Interstitial viscosity |
cSt |
46 |
||||||
|
Degree of Cleanliness |
Degree |
≤6(NAS1638) |
||||||
|
Working Noise |
dB(A) |
65 |
65 |
68 |
70 |
75 |
78 |
80 |
|
Total Power |
kW |
0.55 |
1.1 |
1.5 |
3 |
5.5 |
7.5 |
11 |
|
Size |
L |
900 |
1300 |
1400 |
1600 |
1700 |
1800 |
1900 |
|
W |
700 |
800 |
900 |
1000 |
1250 |
1350 |
1450 |
|
|
H |
1400 |
1500 |
1600 |
1750 |
1800 |
1850 |
1900 |
|
