Chongqing TOP Oil Purifier Co., Ltd. is one of the most reliable manufacturers and suppliers of hydraulic oil filtration system in China, also supports customized service. Please feel free to buy advanced hydraulic oil filtration system made in China here from our factory.
Application

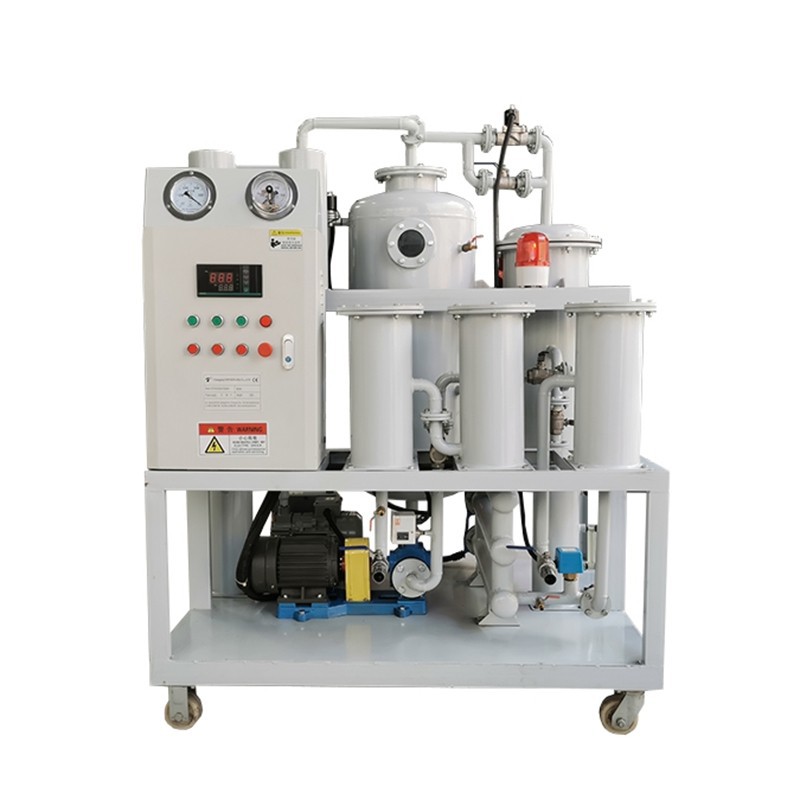

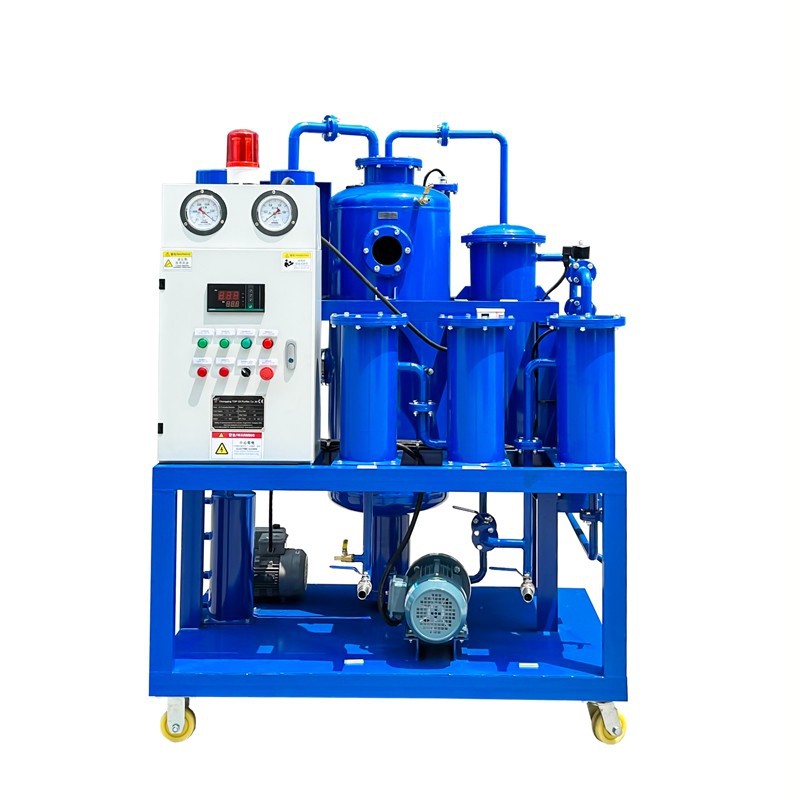

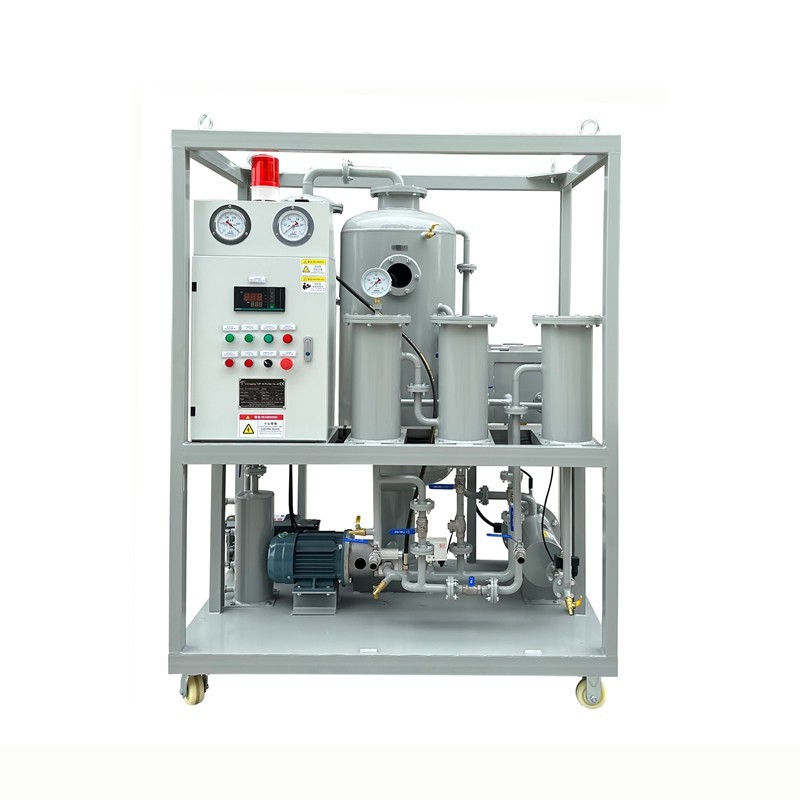

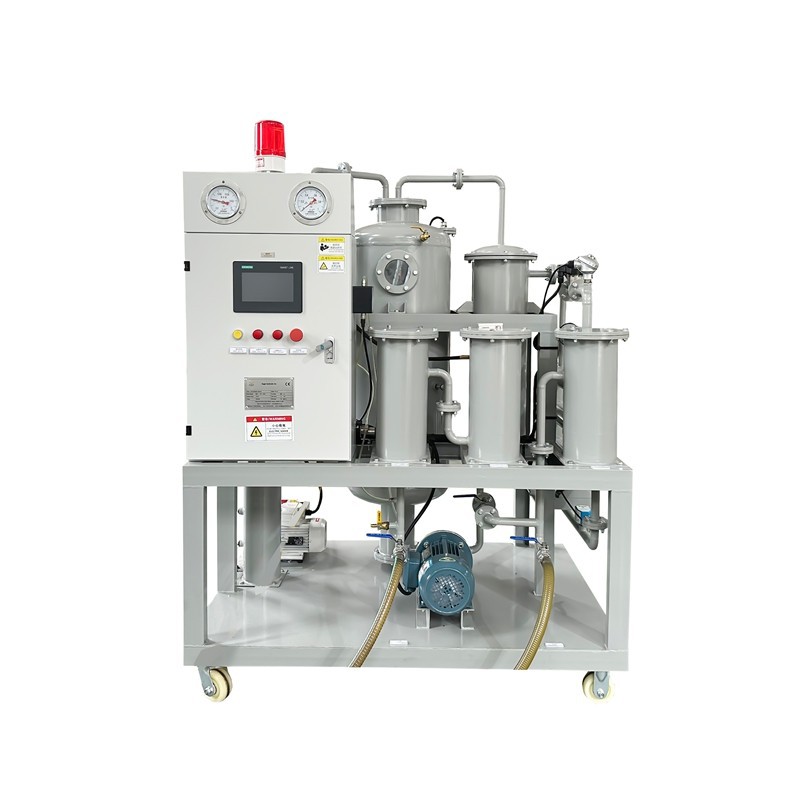

TYA Series Hydraulic Oil Filtration System
The TYA series Hydraulic Oil Filtration System purifies various industrial oils including hydraulic oil, gear oil, engine oil and refrigeration oil. Factories in metallurgy, mining, power and manufacturing rely on this hydraulic oil filtration system to remove oil contaminants and secure stable equipment operation.
Features
1,Comes with an internal backwash unit that flushes out built-up particles automatically.
2,The layered filtration design enables both high-precision filtration and a greater capacity for retaining solid impurities.
3,We supply corrosion-proof stainless steel filter cartridges; they capture large volumes of solid contaminants and stand up to daily processing of hydraulic, gear, heat treatment and compressor oil in metallurgy, mining and power plants.
4,Combined 3D evaporation and layered thin-film separation works fast to draw out free water, dissolved micro water and trapped air mixed inside industrial oil.
5,We offer extra custom fittings based on your site needs: twin filter setup to swap elements without shutting down the unit, Siemens PLC control system, real-time oil condition sensors and movable trailer frames.
Technical Specifications
|
Item |
Unit |
TYA-10 |
TYA -20 |
TYA -30 |
TYA -50 |
TYA -100 |
TYA -150 |
TYA -200 |
TYA -300 |
||||||||
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
||||||||
|
Vacuum Degree |
Mpa |
-0.06 ~ - 0.096 |
|||||||||||||||
|
Working Pressure |
Mpa |
≤ 0.5 |
|||||||||||||||
|
Temperature Range |
℃ |
0~100 |
|||||||||||||||
|
Power Supply |
380V/50HZ/3P 5 Wires (Can be customized) |
||||||||||||||||
|
Working Noise |
dB(A) |
≤ 65~80 |
|||||||||||||||
|
MTBF |
H |
≥ 4000 |
|||||||||||||||
|
Continuous Working |
H |
≥150 |
|||||||||||||||
|
Heating Power |
KW |
15 |
18 |
24 |
36 |
60 |
90 |
120 |
180 |
||||||||
|
Total Power |
KW |
17 |
20 |
26 |
39 |
64 |
96 |
128 |
195 |
||||||||
|
Oil Outlet/Inlet Caliber |
mm |
Φ25 |
Φ25 |
Φ32 |
Φ32 |
Φ38 |
Φ50 |
φ60 |
φ76 |
||||||||
|
Weight |
KG |
350 |
380 |
400 |
450 |
600 |
900 |
1000 |
1600 |
||||||||
|
Size |
L |
mm |
1300 |
1300 |
1350 |
1450 |
1650 |
1900 |
2100 |
2400 |
|||||||
|
W |
mm |
900 |
900 |
1000 |
1050 |
1100 |
1300 |
1400 |
1600 |
||||||||
|
H |
mm |
1650 |
1650 |
1700 |
1750 |
1800 |
1900 |
2000 |
2100 |
||||||||
|
Index After Filtering |
Moisture Content |
PPM |
≤ 50 |
||||||||||||||
|
Gas Content |
% |
0.1 |
|||||||||||||||
|
Impurity Size |
μm |
≤5 (Can be customized) |
|||||||||||||||
|
Demulsification Value |
(Fresh oil)≤15min, (Oil in operation)≤30min |
||||||||||||||||
|
Cleanliness |
Degree |
≤ 6(NAS 1638) |
|||||||||||||||
FAQ
Q: What's the advantage of multi-stage filtration design?
A: Layered filter structure catches tiny particles at high precision, while holding much more dirt before blocking up. Operators spend less time on frequent filter inspection and replacement work.
Q: Why do you adopt stainless steel filter cartridges?
A: These cartridges resist corrosion when processing heat treatment oil, hydraulic oil and other industrial fluids in mining, metallurgy and power plant workshops.
Q: Can I replace filter elements without shutting down the whole machine?
A: Yes, we provide optional dual filtration setup. You can swap clogged cartridges while the Hydraulic Oil Filtration System keeps running to avoid production pause.
Q: What's the advantage of multi-stage filtration design?
A: Layered filter structure catches tiny particles at high precision, while holding much more dirt before blocking up. Operators spend less time on frequent filter inspection and replacement work.
Q: Why do you adopt stainless steel filter cartridges?
A: These cartridges resist corrosion when processing heat treatment oil, hydraulic oil and other industrial fluids in mining, metallurgy and power plant workshops.
Q: Can I replace filter elements without shutting down the whole machine?
A: Yes, we provide optional dual filtration setup. You can swap clogged cartridges while the Hydraulic Oil Filtration System keeps running to avoid production pause.
